A Mutation-Based Fuzzer for Evaluating Prompt Robustness in LLM-based Applications

License: MIT Python 3.8+

Motivation

In production LLM-based applications, small variations in prompts can lead to dramatically different outputs, potentially breaking critical functionality. A single typo, case change, or rephrasing can cause a well-designed prompt to fail catastrophically. Quirx addresses this critical gap by systematically testing prompt robustness through controlled mutations.

Why does this matter?

When to use Quirx:

Quirx tool overview

Quirx is a Python-based tool designed to assess the robustness of LLM-based applications (like GPT-4, Claude, etc.) by introducing controlled, semantic-preserving mutations to prompts or input text. It helps detect prompt brittleness, semantic drift, and inconsistent outputs, which are major issues in prompt-based systems.

Detailed Architecture

graph TD
    A(Prompt File + Input) --> B[Mutation Engine]
    B --> C[Lexical Mutations]
    B --> D[Semantic Mutations]
    B --> E[Structural Mutations]

    C --> F[Case Changes<br/>Punctuation<br/>Spacing]
    D --> G[Synonyms<br/>Paraphrasing]
    E --> H[Reordering<br/>Restructuring]

    F --> I(Mutated Prompts)
    G --> I
    H --> I

    I --> J[LLM Runner]
    A --> J

    J --> K{OpenAI Provider}
    J --> L{Anthropic Provider}
    J --> M{Mock Provider}

    K --> N(Original Response)
    K --> O(Mutated Responses)
    L --> N
    L --> O
    M --> N
    M --> O

    N --> P[Output Comparer]
    O --> P

    P --> Q[Token Similarity]
    P --> R[Semantic Similarity]
    P --> S[Structural Similarity]

    Q --> T[Classification]
    R --> T
    S --> T

    T --> U{Equivalent}
    T --> V{Minor Variation}
    T --> W{Behavioral Deviation}

    U --> X[Report Generator]
    V --> X
    W --> X

    X --> Y(Markdown Report)
    X --> Z(JSON Report)
    X --> AA(HTML Report)

    style A fill:#e1f5fe
    style B fill:#f3e5f5
    style J fill:#fff3e0
    style P fill:#e8f5e8
    style X fill:#fce4ec

Simplified Architecture

For a high-level overview, see the Simplified Architecture diagram.

Features

The main features of the tool consists of:

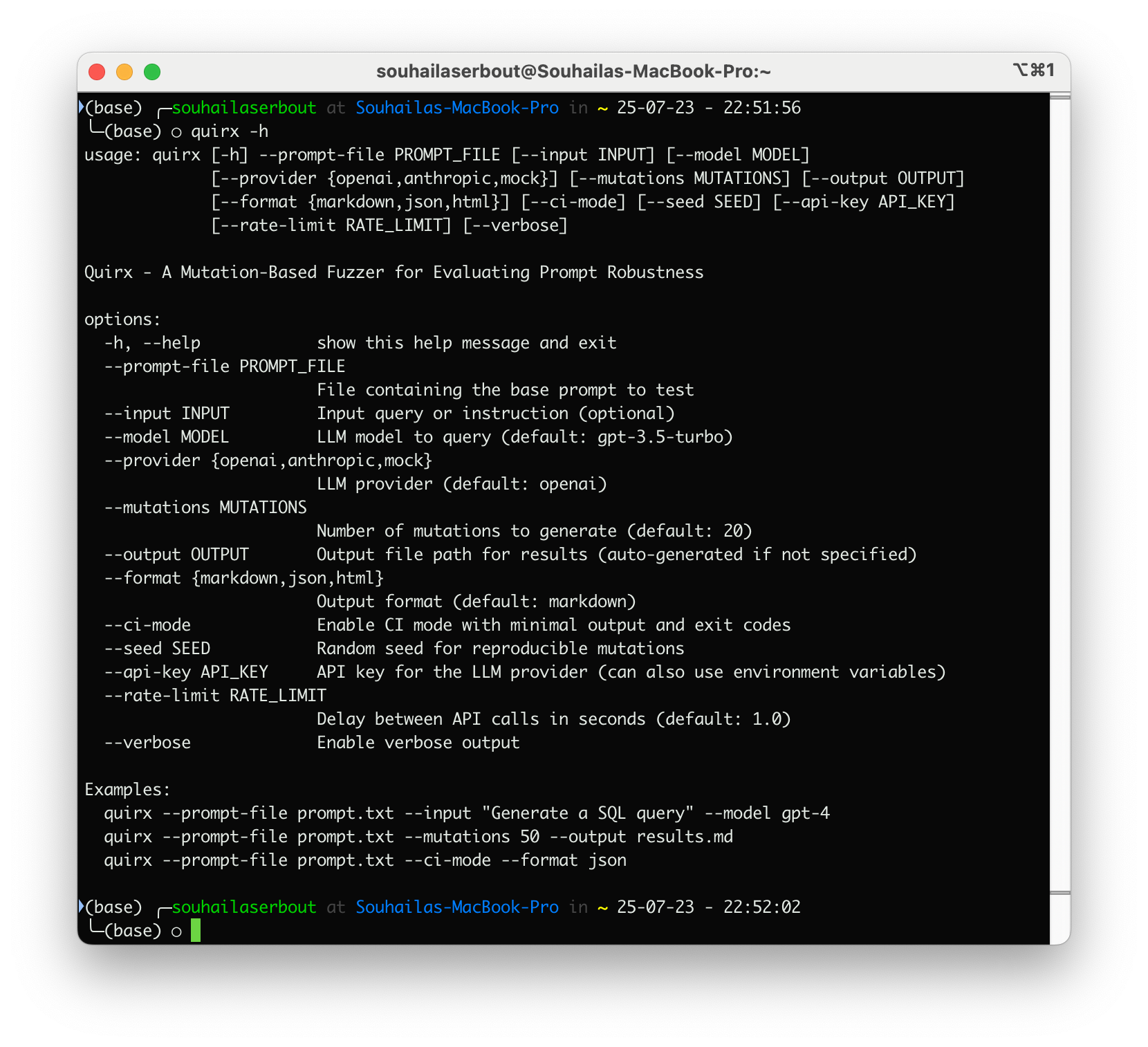

CLI Help Screenshot

Installation

From PyPI - No available for now

coming soon - after paper review results and a few more needed improvements of of the CLI syntax. please install by cloning the repository as explained bellow.

pip install quirx

From Source

git clone https://github.com/souhailaS/quirx.git
cd quirx
pip install -e .

Dependencies

Quirx requires Python 3.8+ and the following core dependencies:

Quick Start

1. Create a Prompt File

Create a file called prompt.txt:

Classify the sentiment of the following text as either POSITIVE, NEGATIVE, or NEUTRAL.

Guidelines:
- Consider the overall tone and emotion
- Look for sentiment indicators like adjectives and context
- Return only one word: POSITIVE, NEGATIVE, or NEUTRAL
- Be objective in your assessment

Text to classify:

2. Run Quirx

# Basic usage with mock provider (no API key needed)
quirx --prompt-file prompt.txt --input "I love this product!" --provider mock

# With OpenAI (set environment variable first)
export OPENAI_API_KEY="your-openai-key"
quirx --prompt-file prompt.txt --input "I love this product!" --model gpt-3.5-turbo

# Generate more mutations and save to file
quirx --prompt-file prompt.txt --input "I love this product!" --mutations 50 --output results.md

# CI mode with JSON output
quirx --prompt-file prompt.txt --input "I love this product!" --ci-mode --format json

3. Analyze Results

Quirx will generate a detailed report showing:

Usage Examples

Command Line Interface

# Test SQL generation prompt (with environment variable)
export OPENAI_API_KEY="your-openai-key"
quirx --prompt-file examples/prompt_sql.txt --input "Show all users from the database" --model gpt-4

# Or with command line argument
quirx --prompt-file examples/prompt_sql.txt --input "Show all users from the database" --model gpt-4 --api-key "your-key"

# Test with custom parameters
quirx --prompt-file prompt.txt \
        --input "Your input here" \
        --model gpt-3.5-turbo \
        --mutations 30 \
        --output report.html \
        --format html \
        --seed 42 \
        --verbose

# CI/CD integration
quirx --prompt-file prompt.txt --input "test input" --ci-mode --format json
echo $?  # Check exit code: 0=pass, 1=fail, 2=warning

Programmatic Usage

from quirx.core.mutator import Mutator
from quirx.core.runner import LLMRunner
from quirx.core.comparer import OutputComparer

# Initialize components
mutator = Mutator(seed=42)
runner = LLMRunner(provider='openai')
comparer = OutputComparer()

# Generate mutations
prompt = "Your prompt here"
mutations = mutator.generate_mutations(prompt, count=20)

# Test original response
original_response = runner.run_prompt(prompt)

# Test mutations and compare
for mutation in mutations:
    mutated_response = runner.run_prompt(mutation.mutated_text)
    comparison = comparer.compare_outputs(
        original_response.text,
        mutated_response.text
    )
    print(f"Similarity: {comparison.overall_similarity:.3f}")

Mutation Types

Lexical Mutations

Semantic Mutations

Structural Mutations

Output Formats

Markdown Report

# Quirx Report

## Summary
- **Robustness Score:** 0.85/1.00
- **Equivalent Responses:** 15 (75.0%)
- **Minor Variations:** 4 (20.0%)
- **Behavioral Deviations:** 1 (5.0%)

JSON Report

{
  "timestamp": "2024-01-15T10:30:00",
  "summary": {
    "robustness_score": 0.85,
    "equivalent_count": 15,
    "behavioral_deviation_count": 1
  },
  "results": [...]
}

HTML Report

Interactive HTML report with visual charts and detailed analysis.

Configuration

API Keys

Quirx supports multiple ways to provide API keys, in order of precedence:

1. Command Line Argument (Highest Priority)

quirx --prompt-file prompt.txt --input "test" --api-key "your-api-key-here"

2. Configuration File (Most Secure)

# Copy the sample configuration
cp config/api_keys.env.sample config/api_keys.env

# Edit with your actual keys (file is ignored by git)
nano config/api_keys.env

# Load the configuration
source config/api_keys.env

# Run Quirx
quirx --prompt-file prompt.txt --input "test" --provider openai

3. Environment Variables

# For OpenAI
export OPENAI_API_KEY="your-openai-key"

# For Anthropic Claude
export ANTHROPIC_API_KEY="your-anthropic-key"

# Then run without --api-key
quirx --prompt-file prompt.txt --input "test" --provider openai

4. Programmatic Usage

from quirx.core.runner import LLMRunner

# Pass API key directly
runner = LLMRunner(provider='openai', api_key='your-api-key')

# Or rely on environment variable
runner = LLMRunner(provider='openai')  # Uses OPENAI_API_KEY env var

5. No API Key Required

# Use mock provider for testing without real API calls
quirx --prompt-file prompt.txt --input "test" --provider mock

API Providers

Testing Scenarios

Quirx is particularly useful for testing:

CI/CD Integration

GitHub Actions Example

name: Prompt Robustness Check

on: [push, pull_request]

jobs:
  fuzz-test:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v3
      - name: Set up Python
        uses: actions/setup-python@v4
        with:
          python-version: '3.10'
      - name: Install dependencies
        run: pip install quirx
      - name: Run Quirx
        env:
          OPENAI_API_KEY: $
        run: |
          quirx --prompt-file prompts/classify.txt \
                  --input "Tweet: I hate this product" \
                  --ci-mode \
                  --format json

Exit Codes

License

This project is licensed under the MIT License - see the LICENSE file for details.
